 | BLJ45E12B02 | Outer Rotor | Output Power 输出功率: 5.9W~9.2W | Weight 重量:22g (Approx.) |
| 外转子 | ||||
Brushless DC Motor-Typical Application 无刷直流电机-典型应用 Personal care：Fascia gun 个人护理：筋膜枪 Household appliances: white appliances, small appliances, small fans 家用电器：白色家电，小家电，小型风扇 | ||||
| 型号 | 电压 | 空载 | 最高效率 | 堵转 | ||||
|---|---|---|---|---|---|---|---|---|
| 使用范围 | 工作电压 | 速度 | 电流 | 速度 | 电流 | 功率 | 电流 | |
| rpm | A | rpm | A | W | A | |||
| BLJ45E12B02 | 9V-20V | 12V | 2500 | 0.18 | 2550 | 5.5 | 66 | 5.5 |
| Characteristic：Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs |
| 特征：信号功能，锁定保护，无级调速，低噪音，低电磁干扰，超长寿命10000-30000小时 |
| Notice： Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. |
| 注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。 |

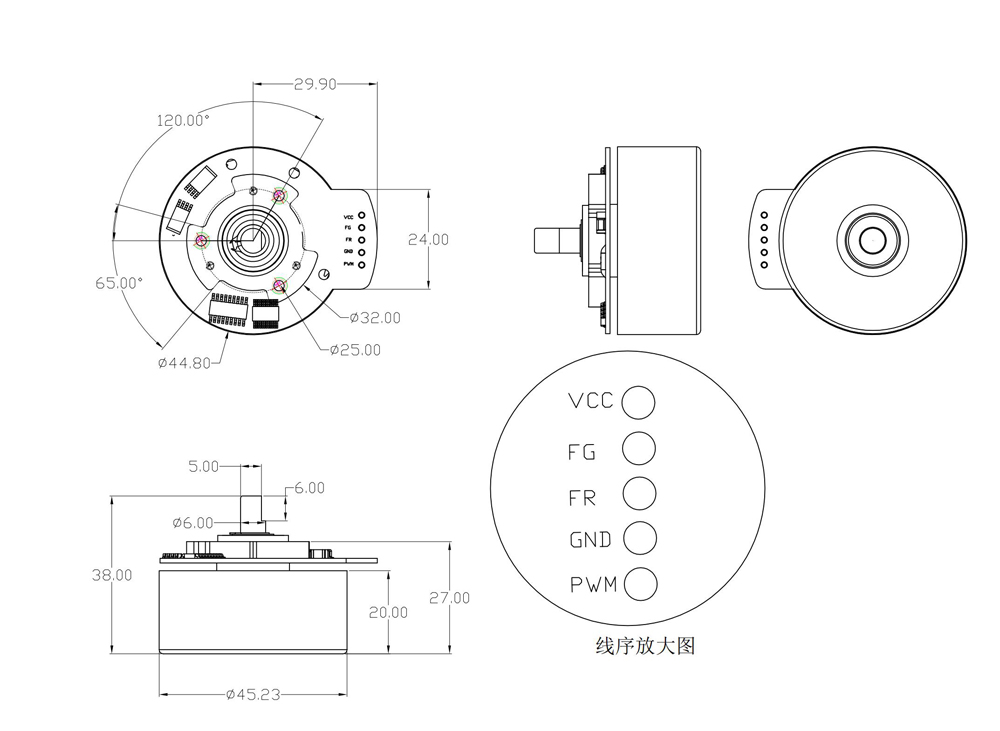

| Outline Drawing 外形图: |
 |
